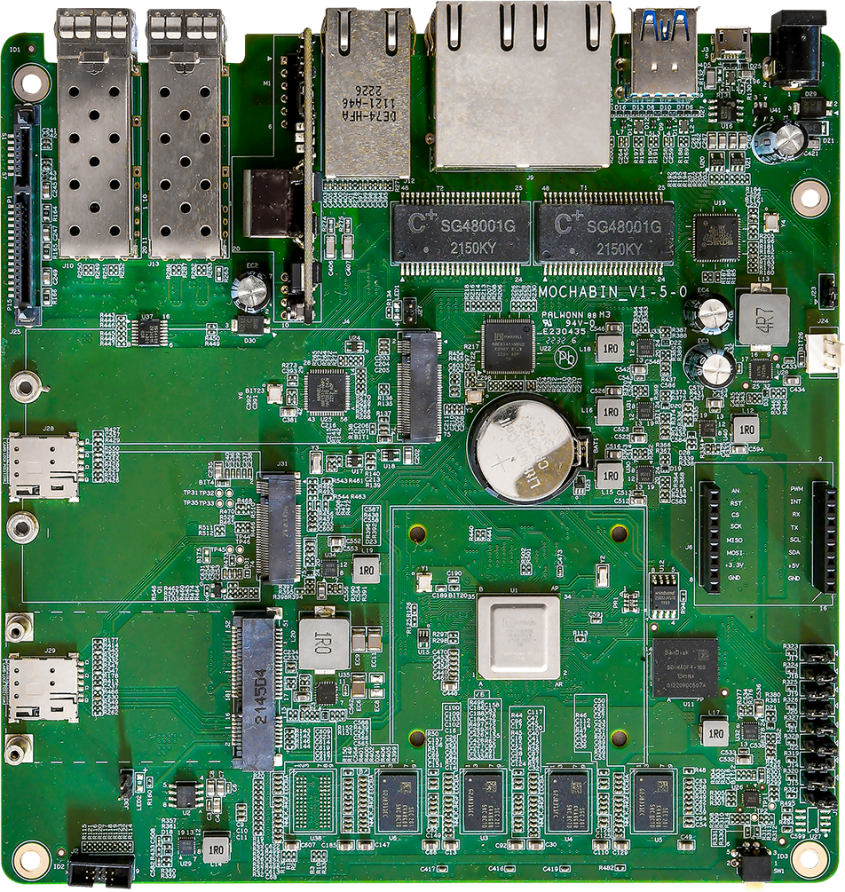

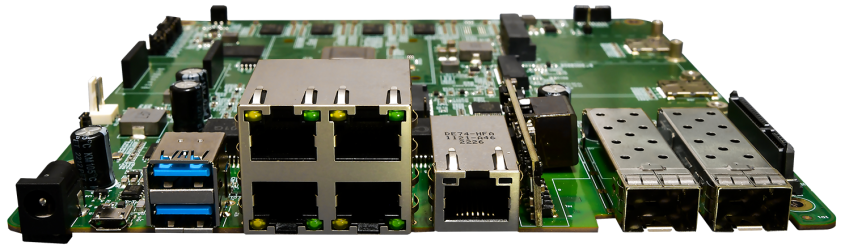

MOCHAbin
$269.00 – $299.00
4G LTE/5G CPE. Power adapter included.
SoC
Marvell Armada 88F7040
Quad Core ARMv8 Cortex-A72
CPU Frequency @1400MHz
Memory
4GB or 8GB DDR4
16GB onboard eMMC
Storage
1x M.2 2280 for SATA
Ethernet
1x 10Gb SFP+ Transceiver ( Sold separately)
1x 1Gb SFP
1x WAN with POE in
4x 1Gb RJ45 LAN
USB Ports
2x USB3.0 Port
Expansion
16-pin (2×8) MikroBUS Connector for expansion and accessories
1x mini-PCIe for Wifi (NXP 9098 802.11ax+Bluetooth 5.3 Wifi card- sold deparately )
1x M.2 B key for 5G module
Debugging
1x JTAG Port, 10-pin (on board)
1x microUSB port for Console
